RIGHT ANGLE GEARING PRODUCTS

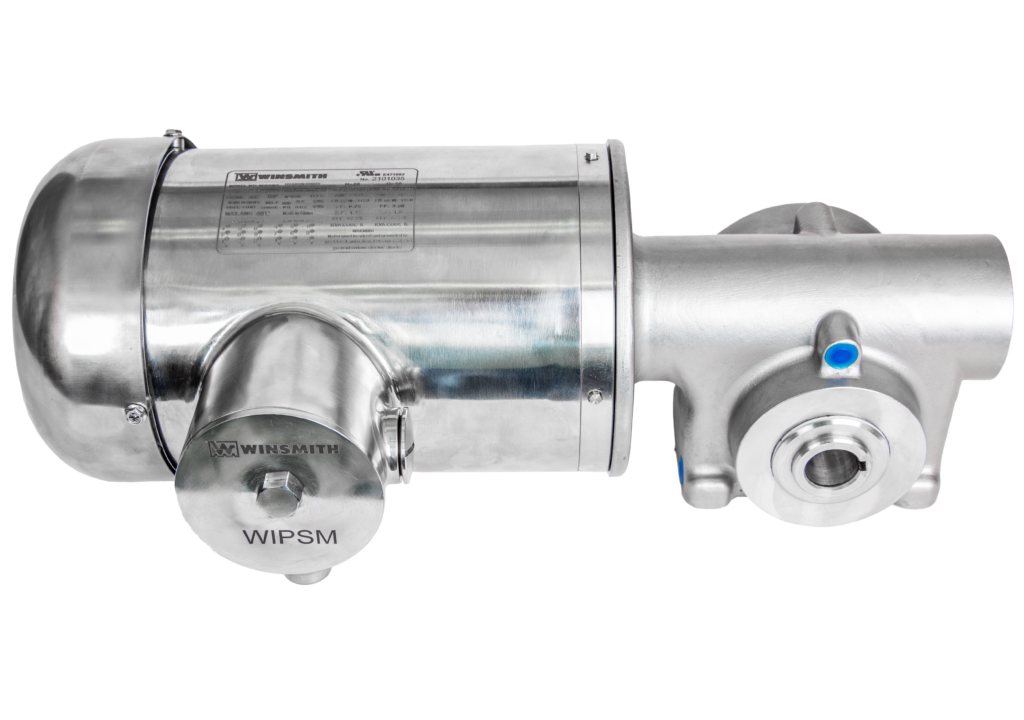

STAINLESS GEARMOTOR

Winsmith IP69K Certified Stainless Gearmotors provide the ultimate ingress protection for the harshest food processing environments. This superior washdown Gearmotor combines the legendary Winsmith Stainless Conveyor Drive with a robust stainless steel motor to provide a complete IP69K rated solution.

  • High performing gearmotor with IP69K rating – the highest-ranking ingress protection (IP) scale classifying a high degree of protection against the intrusion of liquids and solids
  • A modular design offering various combinations that can be customized for each individual application
  • 2-year warranty

Motor Specifications

  • Designed for reliable and durable operation in wet applications
  • First-class customer service from Winsmith
  • Epoxy coated windings
  • 300 series stainless steel housing, end bells, output shaft, and conduit box
  • Double lip shaft seals
  • O-Rings between end bells, housing and conduit cover
  • Welded-on conduit box with epoxy encapsulated head entrance for superior durability and sealing
  • Laser marked motor data and wiring diagram laser marked on housing
  • Meets NEMA MG 1-2016 standards
  • 4-Quadrant drain holes to remove internal condensation
  • Class F insulation
  • Class B rise @ 1.15 service factor
  • Numbered motor leads for quick and easy installation
  • Wire leads sealed to housing port
  • Inverter rated
  • 230/460V
Stainless Gearmotor
Motor Input Power Rating 1/3 HP to 3 HP
Center Distances 1.33 to 3.00 Inches
Standard Ratios* 5:1 to 100:1
Reducer Input Power Rating0.11 HP to 10.87 HP
Output Torque RatingUp to 4573 lbf-in
Gearing Efficiency Up to 97%

* Other ratios available upon request
