Custom Speed Reducers

When a situation arises where a standard speed reducer will not fulfill your needs, and you can't find what you need on our website, please contact us. From concept, to paper, to prototype and eventually full scale production; we are ready to help you tackle your most challenging applications.

Contact Us for More Details

Motion Control

The WINSMITH Motion Control gear product line has been specifically designed for precision and positioning applications. The backlash control levels are well below standard industrial products, capable of backlash as low as one arc minute, with motor interfaces for NEMA frames as well as most servo motors.
Learn More »

Download the Motion Control Catalog

C-Line

WINSMITH's C-Line worm gear reducers have set the industry standard in versatility, reliability, and performance. Single, Double, and triple reduction reducers are available with a wide ratio range from 5:1 up to 180,000:1 and torque ratings up to 65,000 pound inches.
Learn More »

Download the C-Line Catalog

Planetary

WINSMITH Planetary Reducers combine high load capacity, smooth quiet operation, and long operating life into a very compact package. Our planetary reducers offer a ratio range of 1.1:1 up to 50,000:1 as standard ratios in a single stage and housing.
Learn More »

Download the Planetary Catalog

Double Enveloping
Worm Gears

Double enveloping worm gear technology represents the leading edge in gear product development. Double enveloping gearing was designed to give you a unique blend of efficiency, high torque and higher load capacity. It provides more torque, pound for pound, than any other types of gear reducers. Learn More »

Download the D90 - DE Catalog

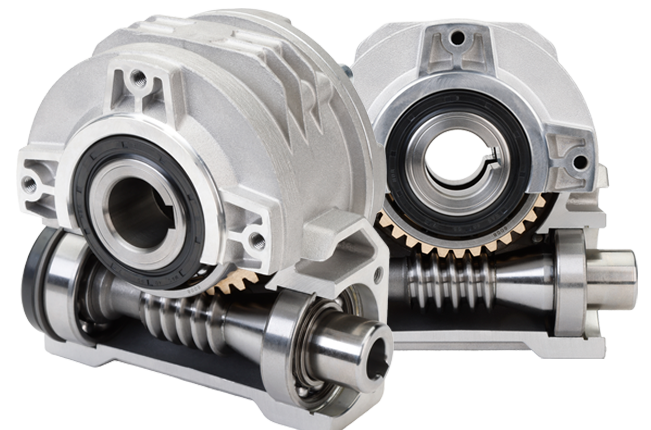

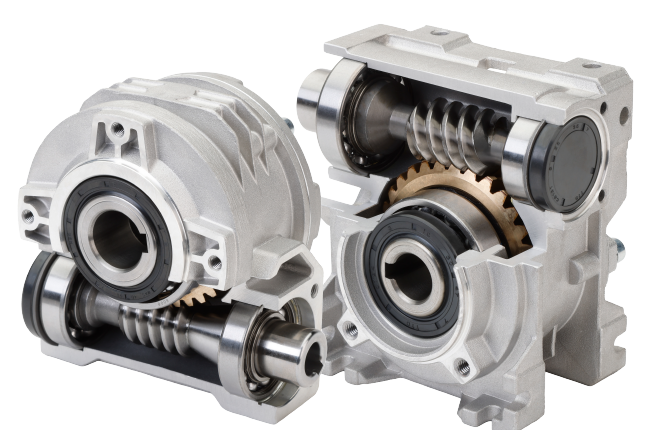

WINSMITH Aluminum

WINSMITH Aluminum Speed Reducers offer a compact design and light weight performance. NEMA and IEC configurations, as well as many accessories are available. The WINSMITH Aluminum Speed Reducer is a perfect fit for conveying systems, packaging applications, and many others.
Learn More »

Download Winsmith's Aluminum Catalog

SE ENCORE™
SPEED REDUCERS

Unique, powerful performance featuring 24 hour shipping, the WinGuard Epoxy Coating System, and up to a 40% increase in torque ratings. Learn More »

SE Encore Series:

SE Encore Multimount speed reducers are a component system consisting of a hollow or solid output shaft universal mount reducer and accessory kit(s). This creates a quick and easy... Learn More »

SE Encore Integral speed reducers are assembled to customer application specifications and ready to use out of the box... Learn More »

SE Encore Modified speed reducers are created to exact unique customer application specifications that encompass a variety of special reduction combinations... Learn More »

SE 24 Hour Ship Program

The WINSMITH 24 Hour Ship Program offers the possibility of over a million configurations that can all be shipped 24 hours after order entry. The SE Speed Reducer Family (standard SE Encore, SE Maximizer Plus, and SE Stainless Steel) are all available for 24 hour shipping and can be applied to an array of possible applications.

Click Here for More Information

Browse for SE Speed Reducers:

selection, configuration, and 3D models

Search SE Speed Reducer
ECatalog by Performance

(Input HP, Output Torque, Efficiency, etc)

Enter an existing Winsmith
partnumber/serial number for support.

(Ex: E24MDTS2100...)
Markets and Applications

Where our reducers are being used

  • Food Processing and Packaging
  • Conveyors and Conveying
  • Material Handling Equipment
  • Packaging Machinery
  • Poultry, Meat, Pork, and
    Seafood Processing
  • Specialty Machinery
  • Motion Control and Automation
    Machinery
  • Forming Machines
  • Cranes and Hoists
  • Car and Vehicle Wash Equipment
  • Mining, Oil and Gas Equipment
  • Pharmaceutical and Chemical
    Mixing
